PCAP to CSV Conversion

The tshark_to_csv.py script is a helper utility that converts .pcap or .pcapng files into structured .csv files using tshark. This allows packet captures to be processed and analyzed using familiar spreadsheet or database tools.

PCAP to CSV

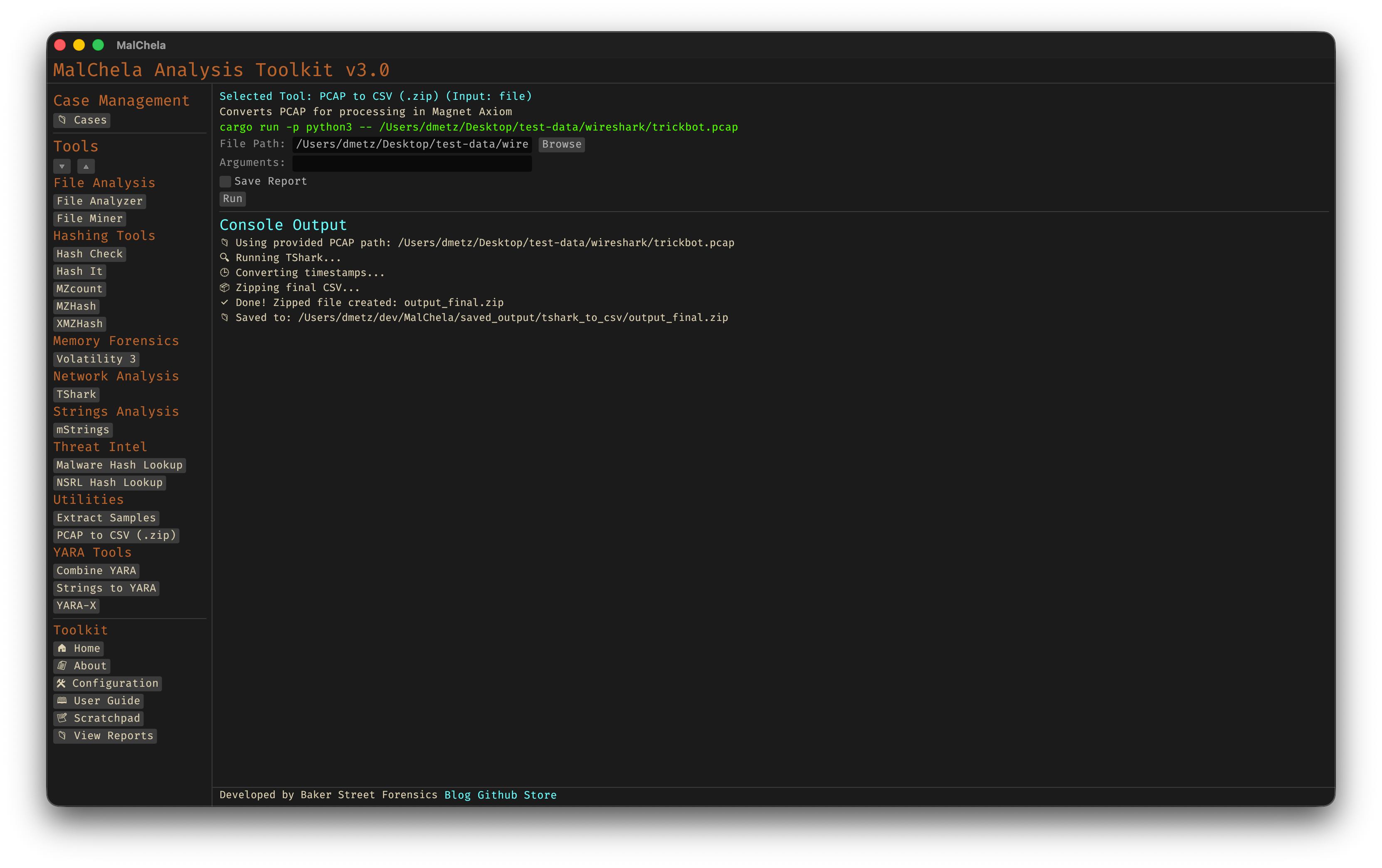

Figure 28: PCAP to CSV

The script uses tshark to extract key fields from each packet and writes them to a CSV file with headers. Users can specify custom fields, or rely on a default set commonly useful for forensic review.

Timestamps in the CSV output are converted into a human-readable ISO 8601 format with microsecond precision (YYYY-MM-DDTHH:MM:SS.ssssssZ), ensuring compatibility with downstream tools such as the Magnet Custom Artifact Generator.

This script is included in the MalChela repository under Utilities/, and is referenced in tools.yaml but commented out by default. Uncomment the entry in tools.yaml to enable it in the GUI.

Requirements:

  • Python 3
  • Wireshark/tshark (must be installed and available in PATH)
