Volatility 3

MalChela integrates support for Volatility 3, a powerful memory forensics framework. This tool enables analysts to examine memory dumps for signs of compromise, persistence mechanisms, and malicious activity.

Integration Overview

Volatility 3 is available in MalChela as an enhanced third-party tool. The GUI provides a dedicated interface for selecting plugins, supplying arguments, and reviewing results — all within a structured panel that mimics the CLI workflow but adds quality-of-life improvements like:

  • Live search and categorized plugin reference
  • Plugin-specific argument helpers
  • Color-coded output for easier review
  • Output saving and file dump options

Volatility

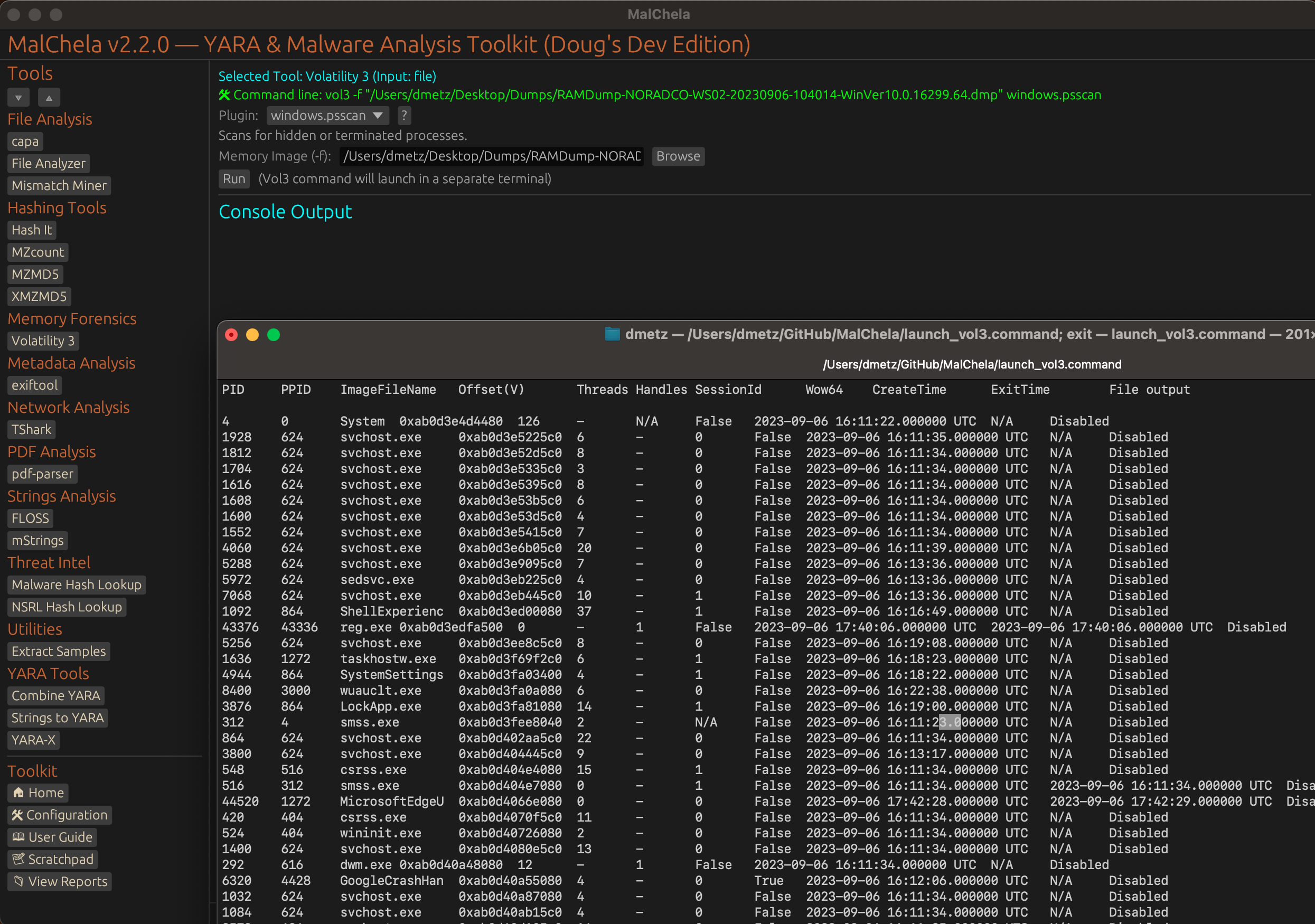

Figure 23: Volatility (launches in separate terminal)

Volatility Plugin Reference

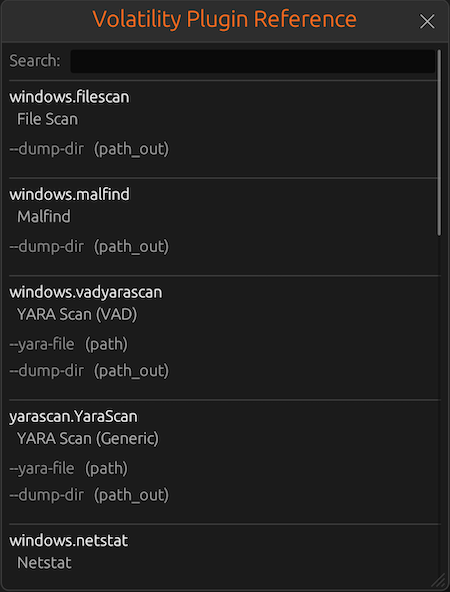

Figure 24: Volatility Plugin Reference

Requirements

To use Volatility 3 within MalChela:

  • You must have vol3 (Volatility 3 CLI) installed and accessible in your system $PATH.
  • On REMnux, vol3 is preinstalled and configured automatically.
  • On macOS or Linux, you can install it via pip: pip install volatility3

tools.yaml Configuration

To use Volatility 3 with the GUI launcher, ensure the correct command value is defined in your tools.yaml configuration. Depending on your environment, the binary may be installed under different names or locations.

Two common examples:

- name: Volatility 3
  description: "Memory analysis using Volatility 3"
  command: ["/Users/dmetz/.local/bin/vol3"]
  input_type: "file"
  file_position: "first"
  category: "Memory Forensics"
  gui_mode_args: []
  exec_type: binary

- name: Volatility 3
  description: "Memory analysis using Volatility 3"
  command: ["vol3"]
  input_type: "file"
  file_position: "first"
  category: "Memory Forensics"
  gui_mode_args: []
  exec_type: script

Make sure that the specified binary path or command is accessible in your system’s $PATH.

Example Use Cases

  • Enumerate processes: windows.pslist
  • Dump suspicious files from memory: windows.dumpfiles --dump-dir /output/path
  • Detect injected code: windows.malfind
  • YARA scanning on memory: windows.vadyarascan --yara-file rules.yar

Output and Reports

All plugin results are streamed to the GUI console with formatting preserved. Where supported, plugins that produce dumped files will output to a user-specified folder.

Known Limitations

  • Some plugins require symbol files (.pdb) to function correctly. Volatility will display a warning if missing.
  • Ensure sufficient system memory when analyzing large memory dumps.
